Date Listed: 09-25-2023
Date Updated: 09-25-2023

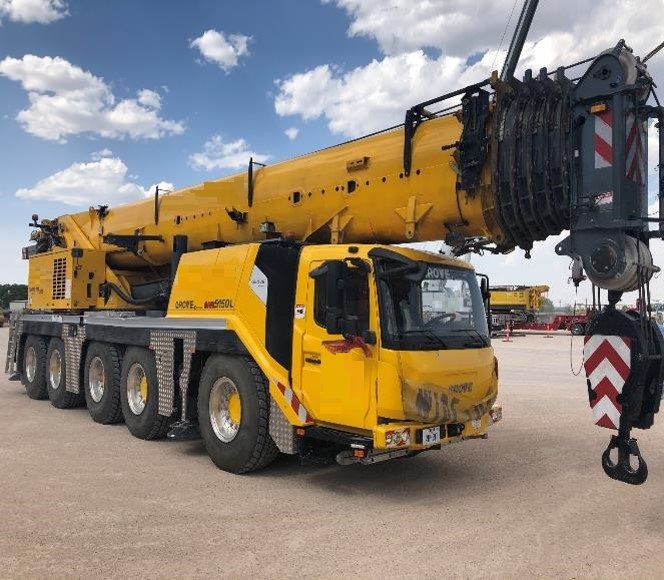

Grove GMK5150L


  • 2019 Grove GMK5150L, 175 Ton, All Terrain Crane; CranesList ID: 839,

    • 42’-197’ Five Section Full Power Megaform Boom with patented TWIN-LOCK boom pinning system with Auxiliary Boom Nose,
    • 36'- 58' hydraulic off-settable lattice Swing Away Extension (Jib) with 2 x 26' Inserts for a total of 110'. Hydraulically off-settable lattice 5°- 40° with hydraulic luffing,
    • Main and Auxiliary Winches with 19mm Wire Rope,
    • Drum Rotation Indicator, Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two block condition with lock-out hoist function,
    • Hoist Camera,
    • Control System - Full electronic control of all crane movements using electrical control levers with automatic reset to zero. Integrated with the RCL and engine management system by CAN-BUS. Crane Control System (CCS) with system with graphic display,
    • 10 Ton Hook Ball,
    • 66 Ton 3-sheave Double Hook Block,
    • 29 Ton Single Sheave Hook Block,
    • 98,100# Counterweights, consisting of various sections with Hydraulic removal system  - AS PER LIEBHERR SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
    • 9.1' wide 10 x 6 x 10, 5 Axle Drive/Steer Grove Carrier,
    • Mercedes Benz OM471LA, 6 cylinders, water cooled, turbocharged, 522 HP,  CARB Tier 4 final (non road) Diesel Engine
    • Exhaust Brake,
    • Mercedes G 280-16 gears forward and 2 reverse Transmission. 2-stage transfer case with longitudinal differential lock,
    • Front and Rear Tires: 385/95 R25 (14.00 R25),
    • Grove exclusive MEGATRAK suspension,
    • Four double hydraulically telescoping beams with vertical cylinders and outrigger pads. Independent horizontal and vertical movement control on each side of the carrier and from the operators cab. Electronic level indicator with automatic leveling system,
    • Dolly Prepped.

    http://www.CranesList.com,

    LOCATED IN TEXAS!
