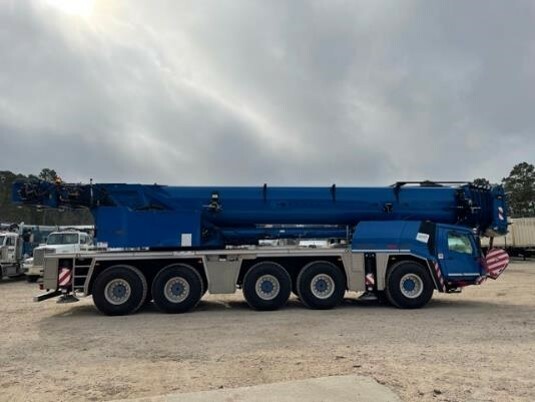

2016 Grove GMK5250L, 300 Ton, All Terrain Crane; CranesList ID: 840,
- 43.5' - 229.7' Seven Section Full Power Megaform Boom with patented TWIN-LOCK boom pinning system with Auxiliary Boom Nose,
- 39'- 69' hydraulic off-settable lattice Swing Away Extension (Jib) with 2 x 26' Inserts for a total of 121'. Hydraulically off-settable lattice 5°- 50° with hydraulic luffing,
- Main and Auxiliary Winches with 22mm Wire Rope,
- Drum Rotation Indicator, EKS 5 Load Moment Indicator (LMI) and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two block condition with lock-out hoist function,
- Hoist Camera,
- Control System - Full electronic control of all crane movements using electrical control levers with automatic reset to zero. Integrated with the RCL and engine management system by CAN-BUS. Crane Control System (CCS) with system with graphic display,
- Hook Ball,
- Two Hook Blocks,
- 176,300 # Counterweights, consisting of various sections with Hydraulic removal system,
- Boom Head Light,
- Operator's Cab - Aluminum, full vision, tiltable (approx. 20°), safety glass, adjustable operator’s seat with suspension, engine-independent heater. Armrest-integrated crane controls. Ergonomically arranged instrumentation and crane operating controls,
- 10.9' wide 10 x 8 x 10, 5 Axle Drive/Steer Grove Carrier,
- Mercedes Benz OM471LA, 6 cylinders, water cooled, turbocharged, 532 HP, CARB Tier 4 final (non road) Diesel Engine
- Exhaust Brake,
- Mercedes G 280-16 gears forward and 2 reverse Transmission. 1-stage transfer case with secondary water retarder,
- Front and Rear Tires: 525/80 R25 (20.5 R25),
- Air Conditioning UP and Down,
- Grove exclusive MEGATRAK suspension,
- Four double hydraulically telescoping beams with vertical cylinders and outrigger pads. Independent horizontal and vertical movement control on each side of the carrier and from the operators cab. Electronic level indicator with automatic leveling system,
- Wireless Remote Control, Outrigger Length Control,
- Boom Float Kit.
http://www.CranesList.com,
LOCATED IN TEXAS!
