Prev Crane

Grove GMK5210 -

Grove GMK5210

Grove GMK5210

Grove GMK5210

Grove GMK5210

Grove GMK5210

Grove GMK5210

Photo 1 of 6 | Click the Image to View More

Date Listed: 10-27-2023
Date Updated: 11-13-2023

Grove GMK5210

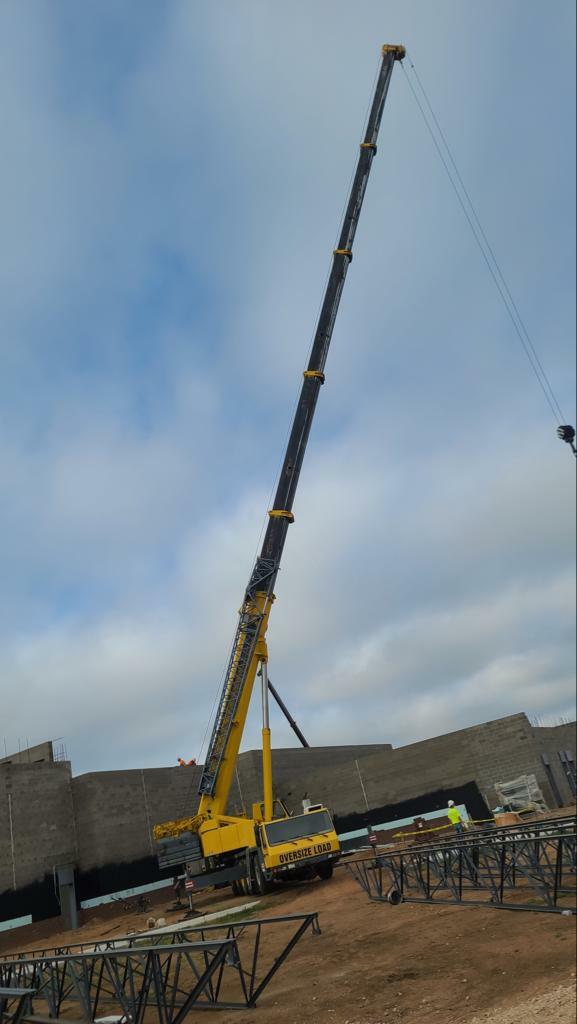

2000 Grove GMK5210, 210 Tons, All Terrain Crane; CranesList ID: 849,

  • 44’-197’ Six Section Full Power Boom with maximum height of 207',
  • Twin Lock Boom Pin Section,
  • 43'-72' Bifold Swingaway Lattice Offsetable (5° - 40°) hydraulic Jib,
  • 2 - 26' Jib Inserts for a total of 125' of Jib,
  • Main and Auxiliary Winches with 22mm Wire Rope,
  • Drum Rotation Indicator, 2 Speed, Load Moment Indicator with Anti-Two Block,
  • Cummins 6BTA 5.9-C 6 Cylinder Diesel Engine (Upper) - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Hook Block,
  • 138,800# Total Counterweight,
  • 10' wide Grove Carrier With 10 x 8 x 10 5 Axle Drive/Steer,
  • Cummins 600 water cooled 6 Cylinder turbo charged and after cooled Diesel Engine  - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Allison Automatic CLT 755 Transmission With 5 Forward and 1 Reverse Speeds  - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Front  and Rear Tires: 20.5R25,
  • Grove MEGATRAK suspension,
  • Outrigger System - Hydraulic two-stage outrigger beams are extended by a single hydraulic cylinder and two cables. Outriggers can adjust to two positions: Fully extended (100%) - 27’ 3” & Partially extended (50%) - 18’ 8“. Outrigger controls are located on both sides of the carrier. An electronic level indicator is located next to each outrigger control box.

LOCATED IN TEXAS!
