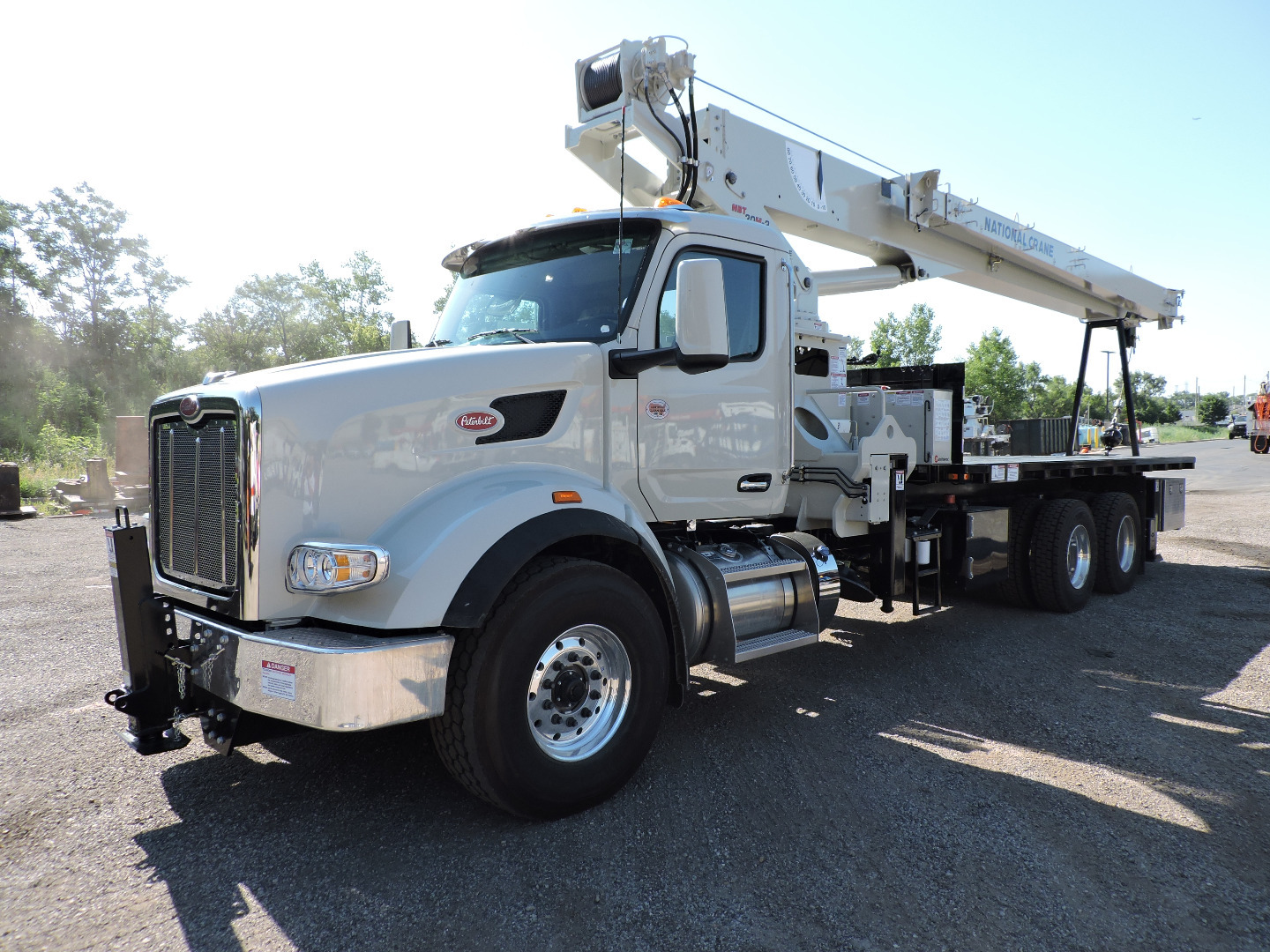

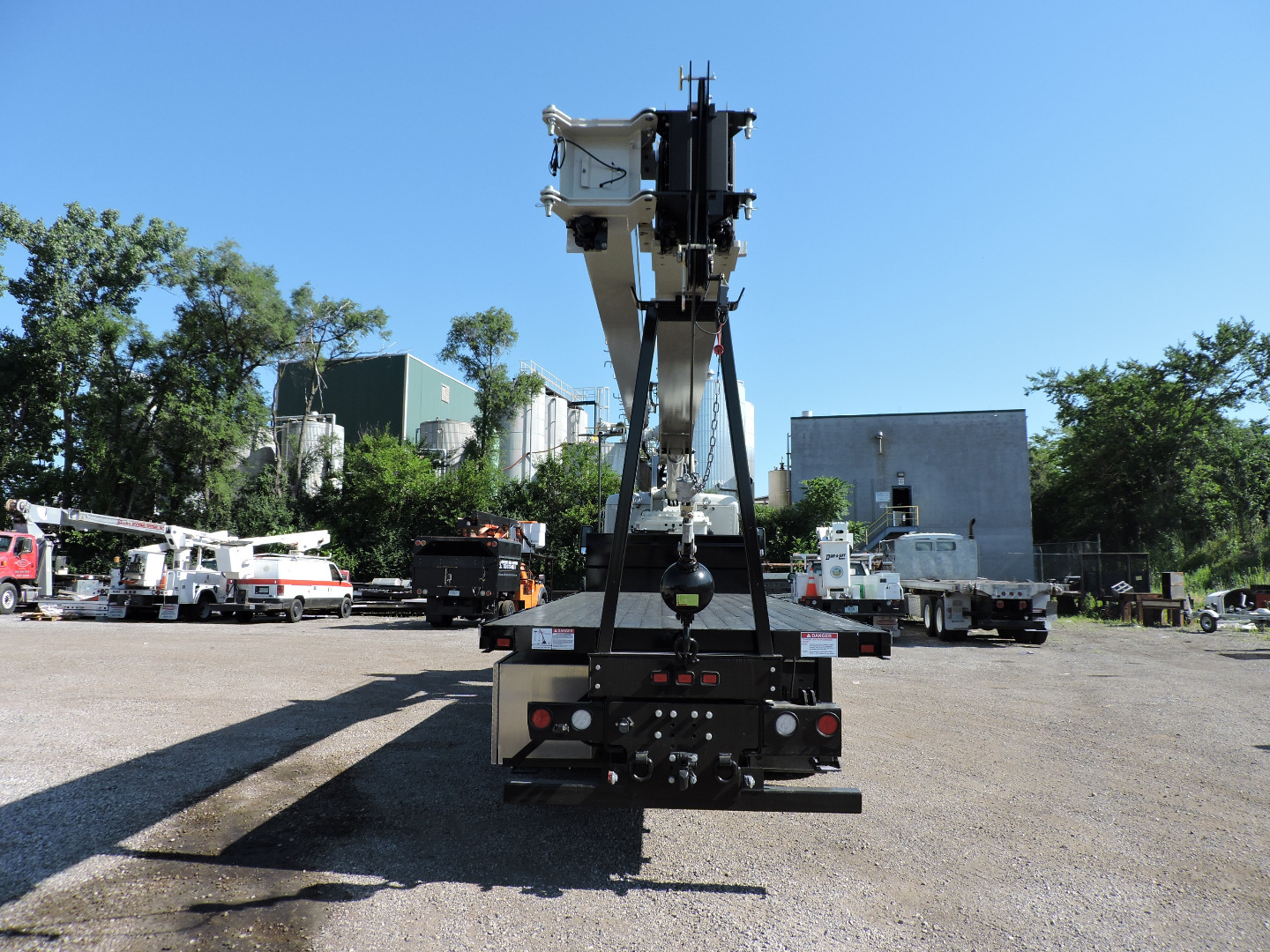

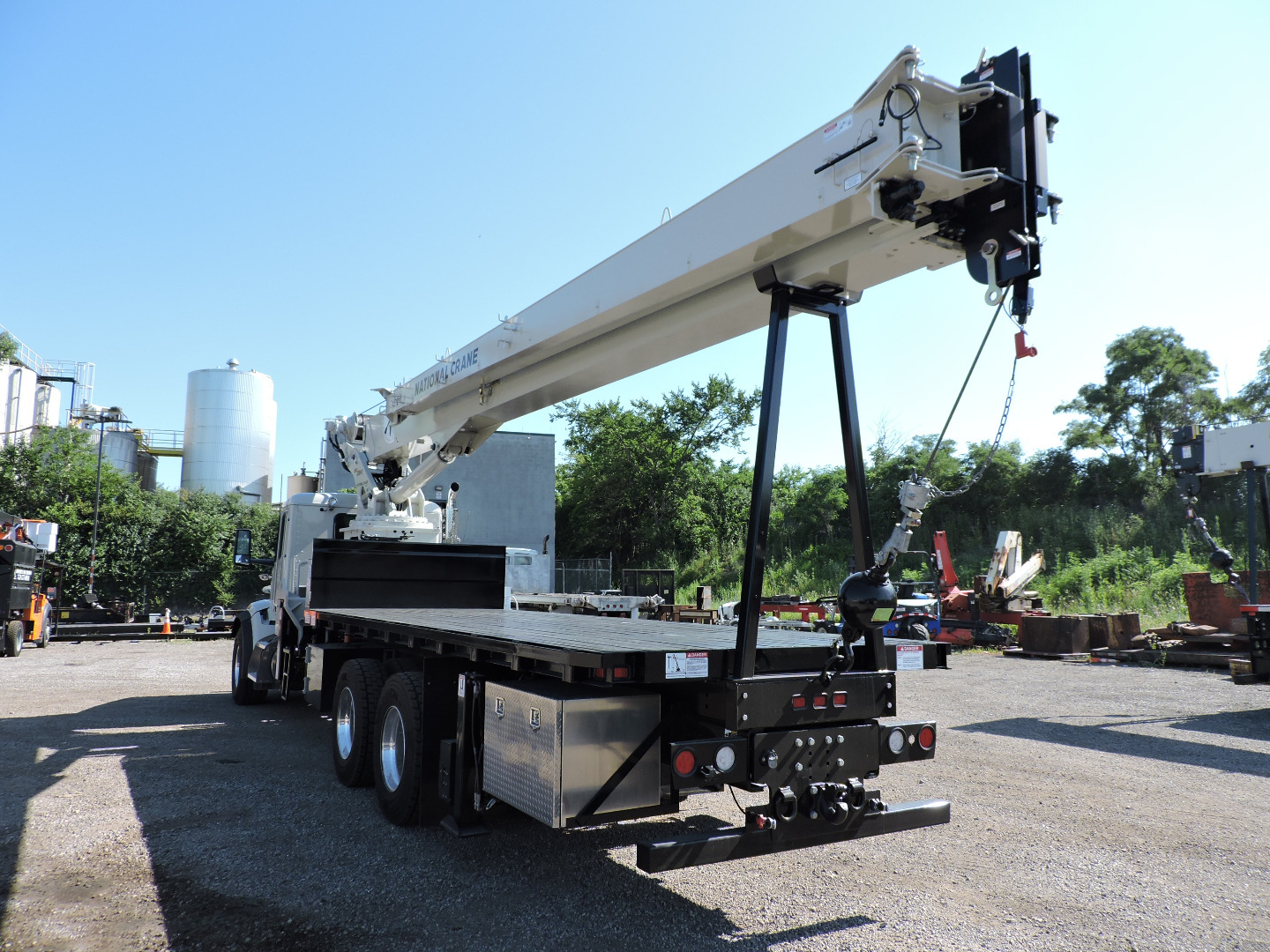

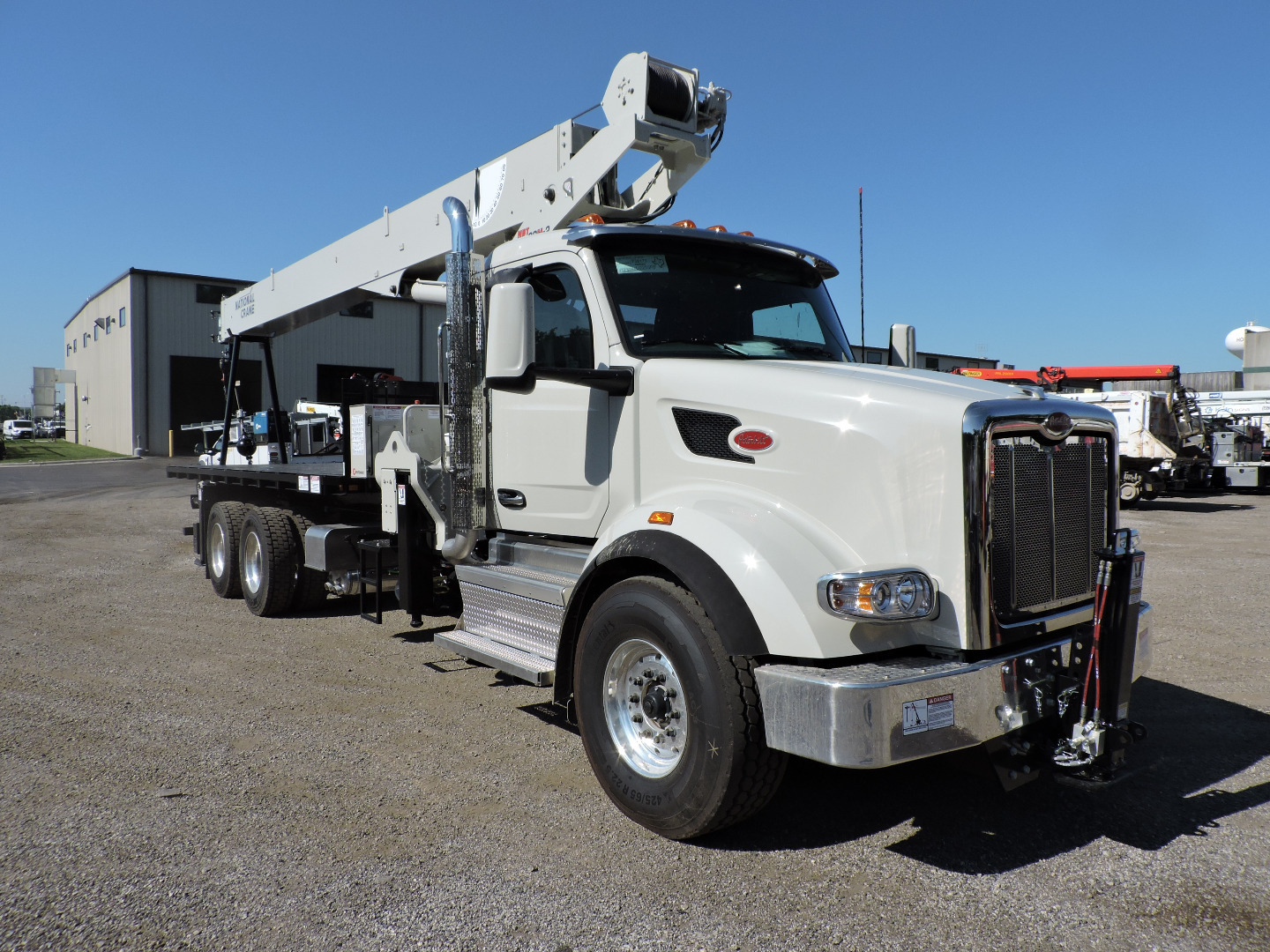

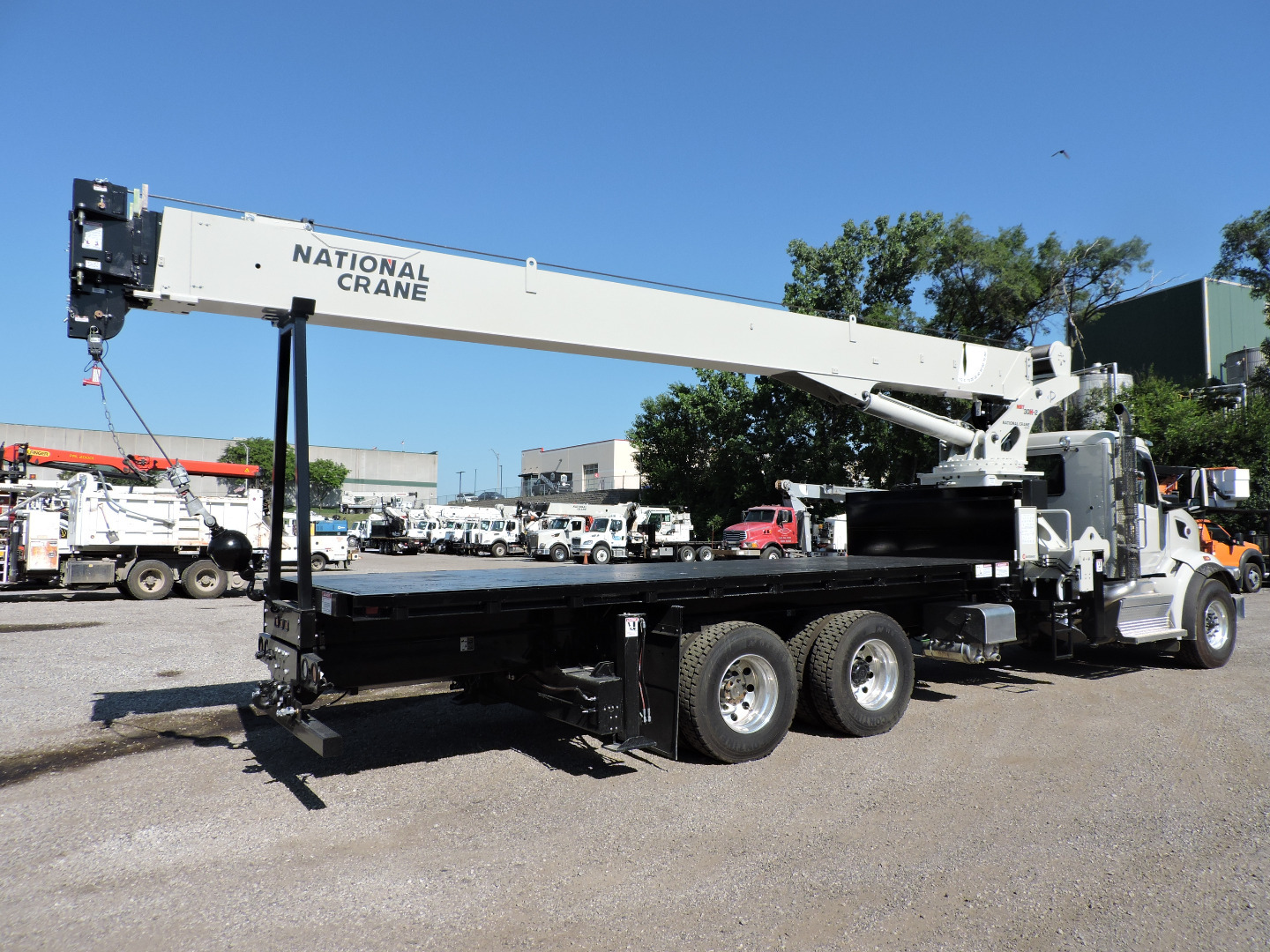

National NBT30H-2 equipped as follows:

-          30-Ton capacity

-          33’ – 110’ four section boom, 120’ tip height

-          25’-44’ telescoping boom extension

-          Rated Capacity Limiter System – displays boom angle and length, working radius, rated load and total weight being lifted. Includes WADS

-          Anti-two block system with internal wiring

-          Front out-and-down outriggers with 20’ full span, 14’ mid span with manual lock pins. Capacity charts provided for full, mid, and fully retracted span

-          Rear out and down stabilizers with 18’6” span

-          Two (2) 20” diameter polymeric outrigger pads for main outriggers

-          Single front outrigger for 360° stability

-          Outrigger motion alarm

-          Outrigger monitoring system

-          410° non-continuous rotation with adjustable swing drive

-          390’ of 9/16” rotation-resistant wire

-          Single line pull – 7,700 lbs

-          Round downhaul weight with top swivel, 7-Ton capacity

-          Two-speed winch

-          Dual-side manual control levers

-          Electric outrigger control pendant for outriggers and stabilizers

-          Hydraulic system includes load sensing piston pump

-          73-gallon oil reservoir with butterfly valve on suction line

-          Oil cooler

-          Painted National Platinum

-          22’ super-duty wood floor bed

-          30” bulkhead

-          36” x 24” x 24” aluminum tool box

-          30 ton bolt in pintle hitch with rigid mounted pintle hook



MOUNTED ON:

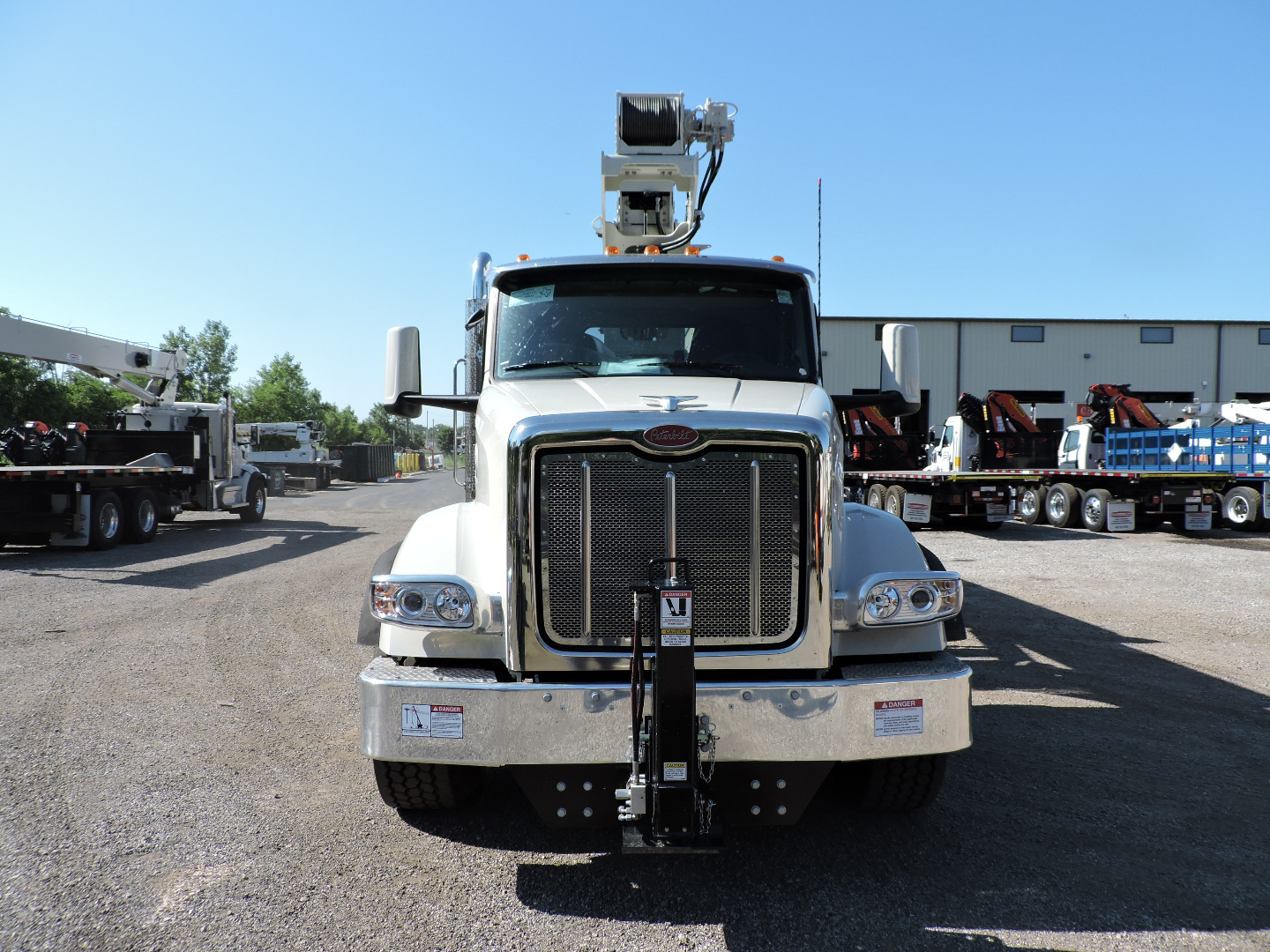

2025 Peterbilt 567, equipped as follows:

-          Cummins X15 450V@1600 rpm, GOV@2000, 1650 ft/lb@950rpm, does not include CARB

-          Engine block heater 110-120V

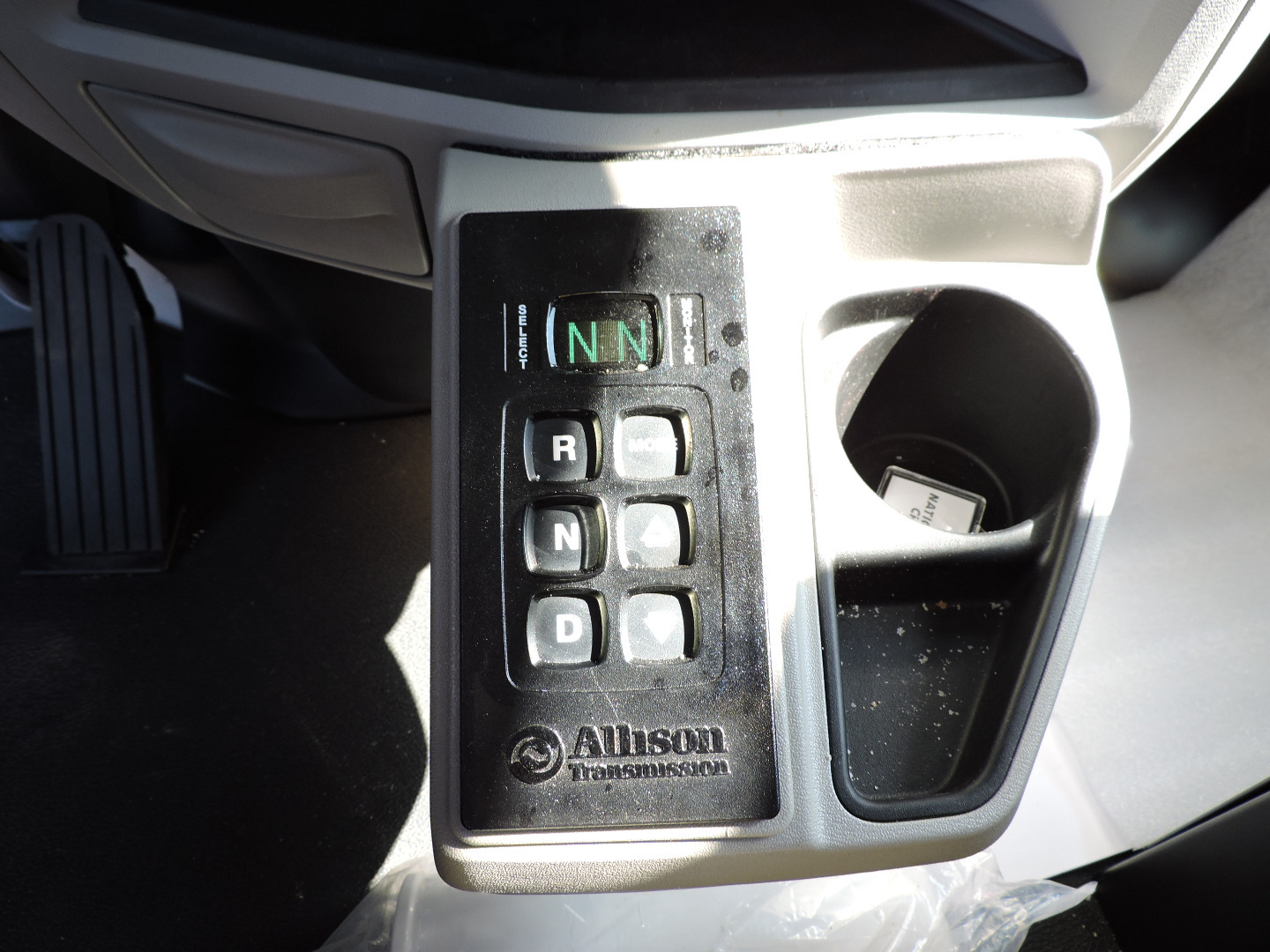

-          Allison 4500 RDS-P Transmission, Gen 6

-          Front Axle – 20,000 lbs with Taper Leaf springs

-          Rear Axle – 46,000 lbs with Hendrickson HMX EX 400/460 suspension

-          4.30 rear axle ratio

-          Differential lock tandem axles

-          Tires

-          Front – 20 ply 425/65R22.5

-          Rear – 14 ply 11R22.5

-          Aluminum wheels with Alcoa finish

-          4 PACCAR premium 12V batteries – 2920 CCA total

-          Exhaust single RH side of cab

-          Bendix air dryer with heater

-          Polished aluminum air tanks outside

-          26” aluminum 80-gallon fuel tank

-          Aluminum bumper swept back polished

-          Stainless steel cover for DEF tank

-          Thermal insulation package in cab

-          Rubber fender lips 4.5” wide

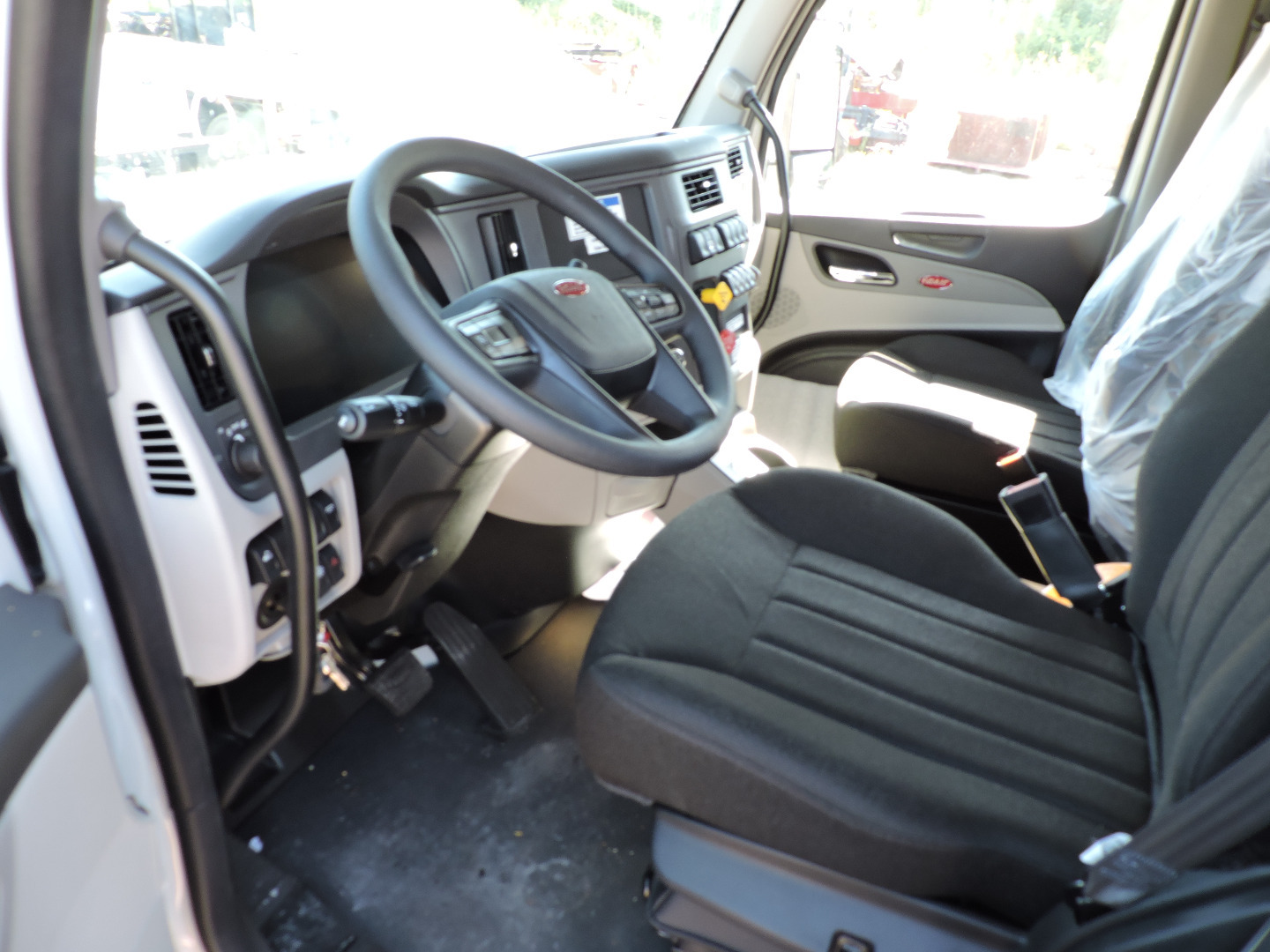

-          Peterbilt high-back driver seat, air ride, fabric, w/ dual arm rests

-          Peterbilt high-back passenger seat, fixed, fabric

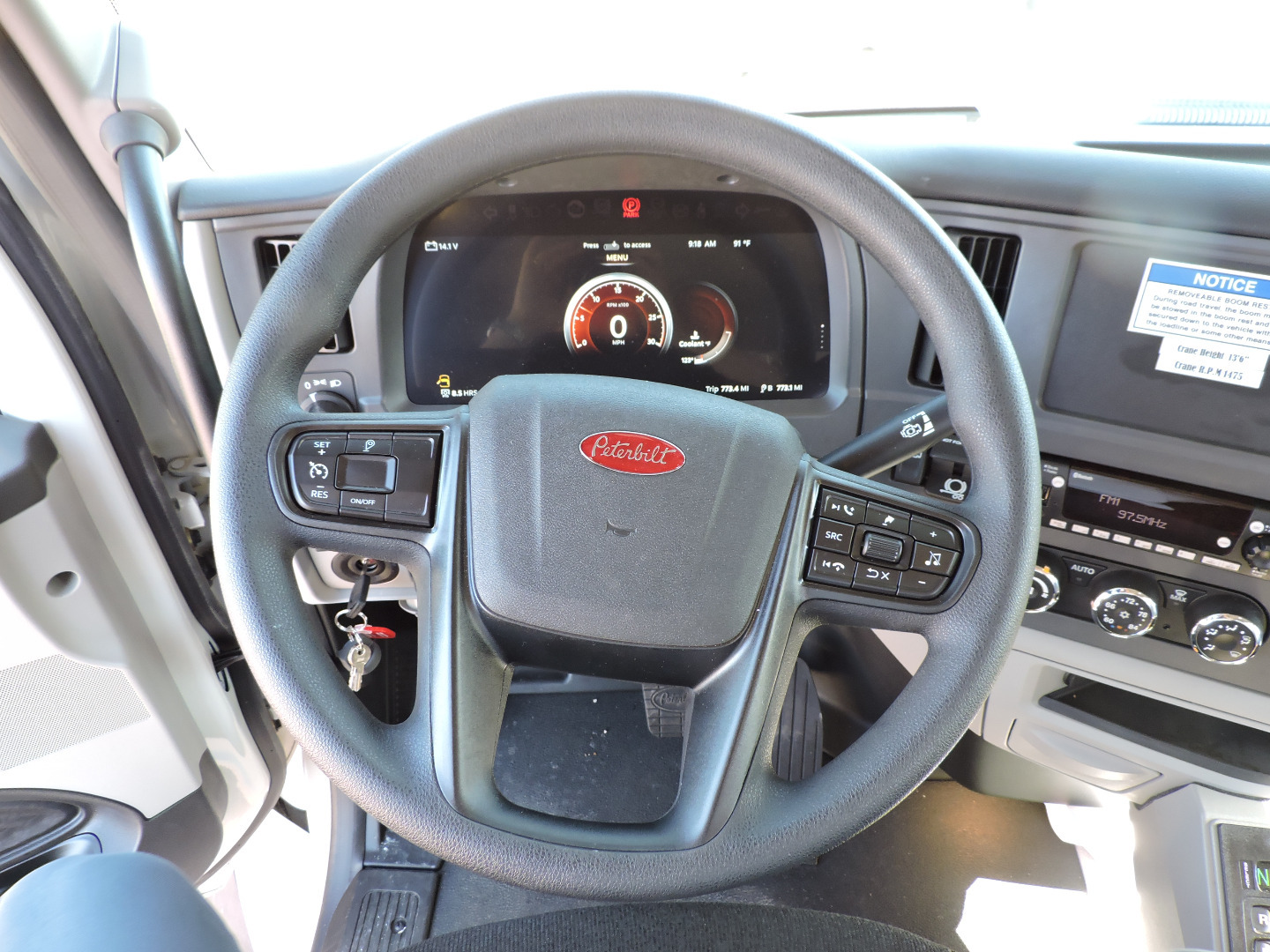

-          Adjustable steering column, tilt/telescope

-          ConcertClass stereo – AM/FM, WB, USB, BT phone

-          Power lift windows

-          Power door locks

-          Outside sunvisor stainless steel

-          Air horn

-          Cab air suspension

-          Triangle reflector kit

-          Fire extinguisher

-          Painted Sand Gray
