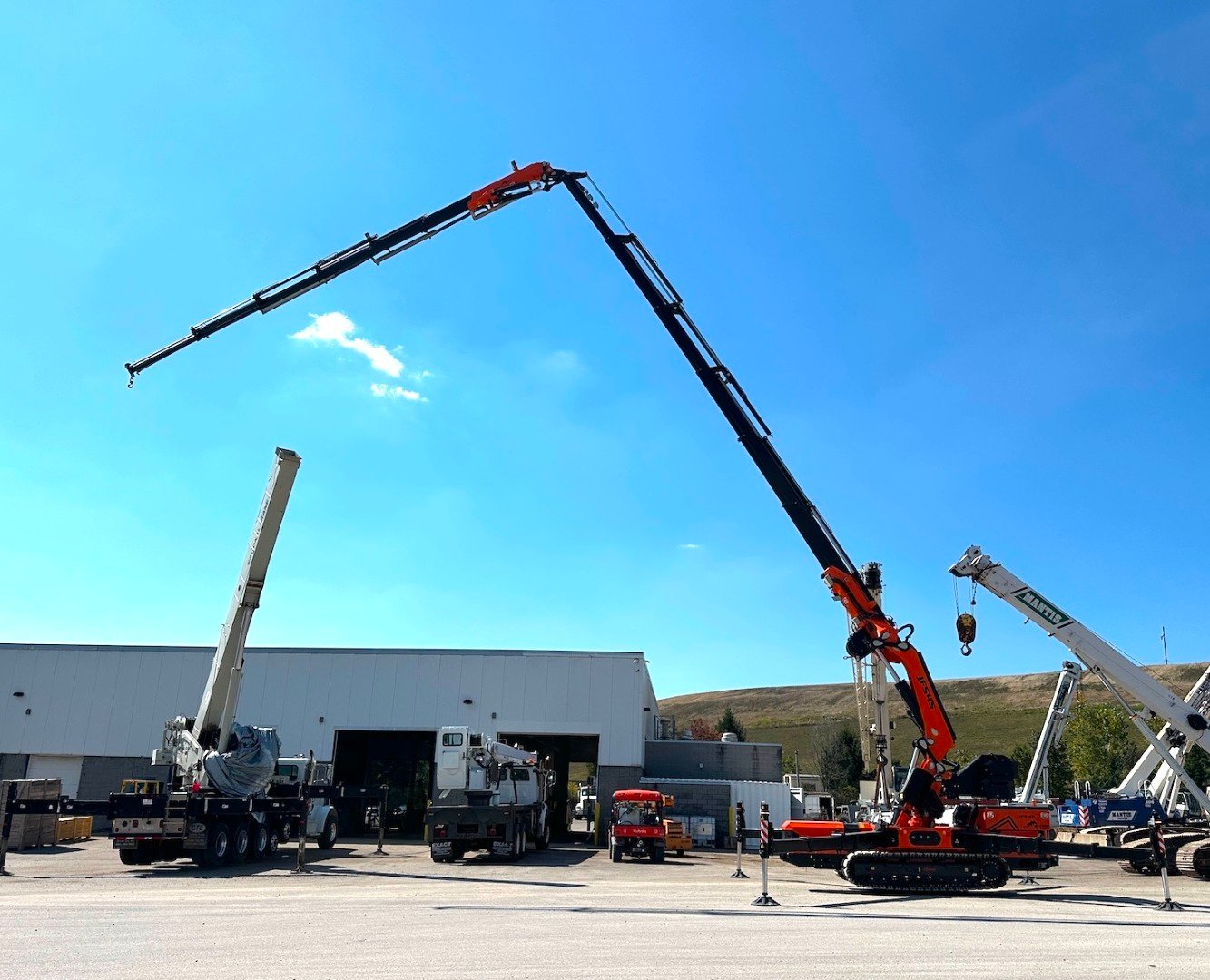

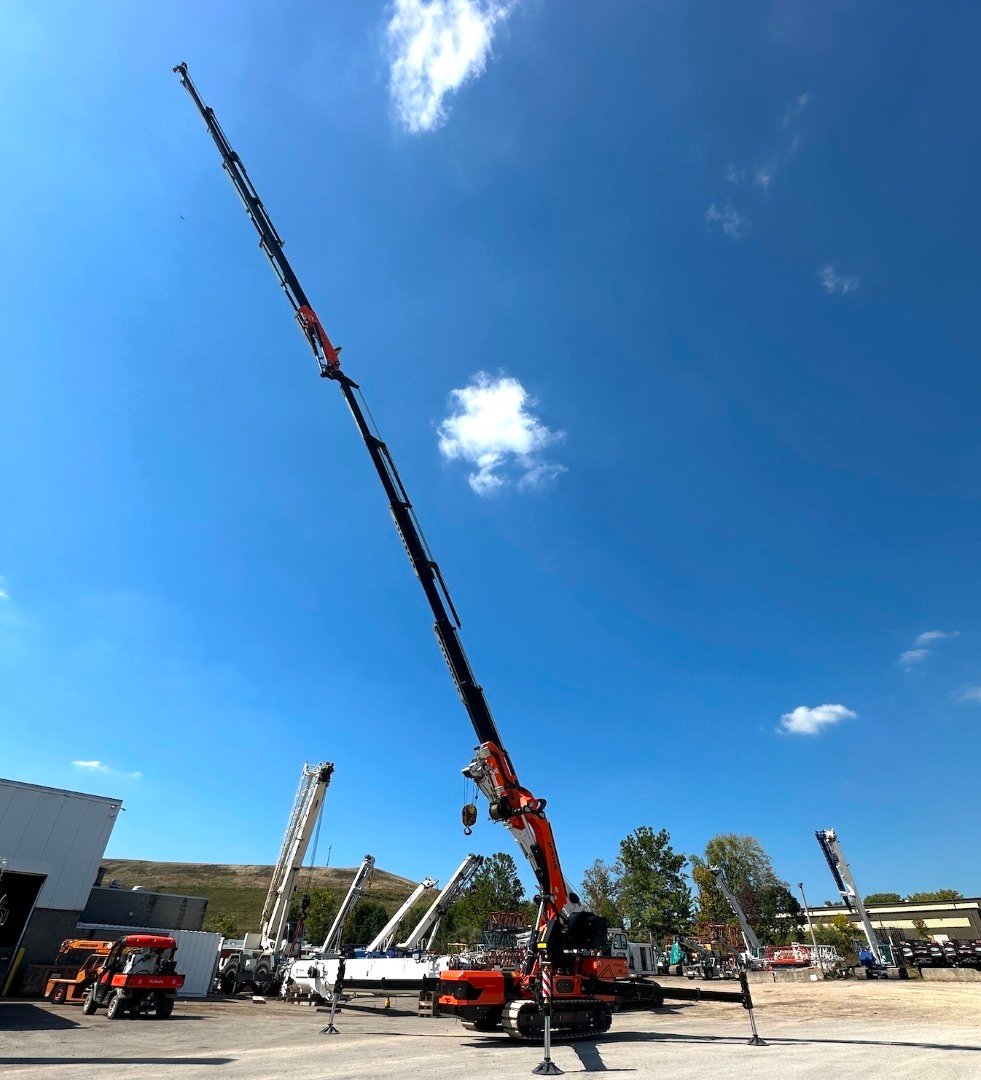

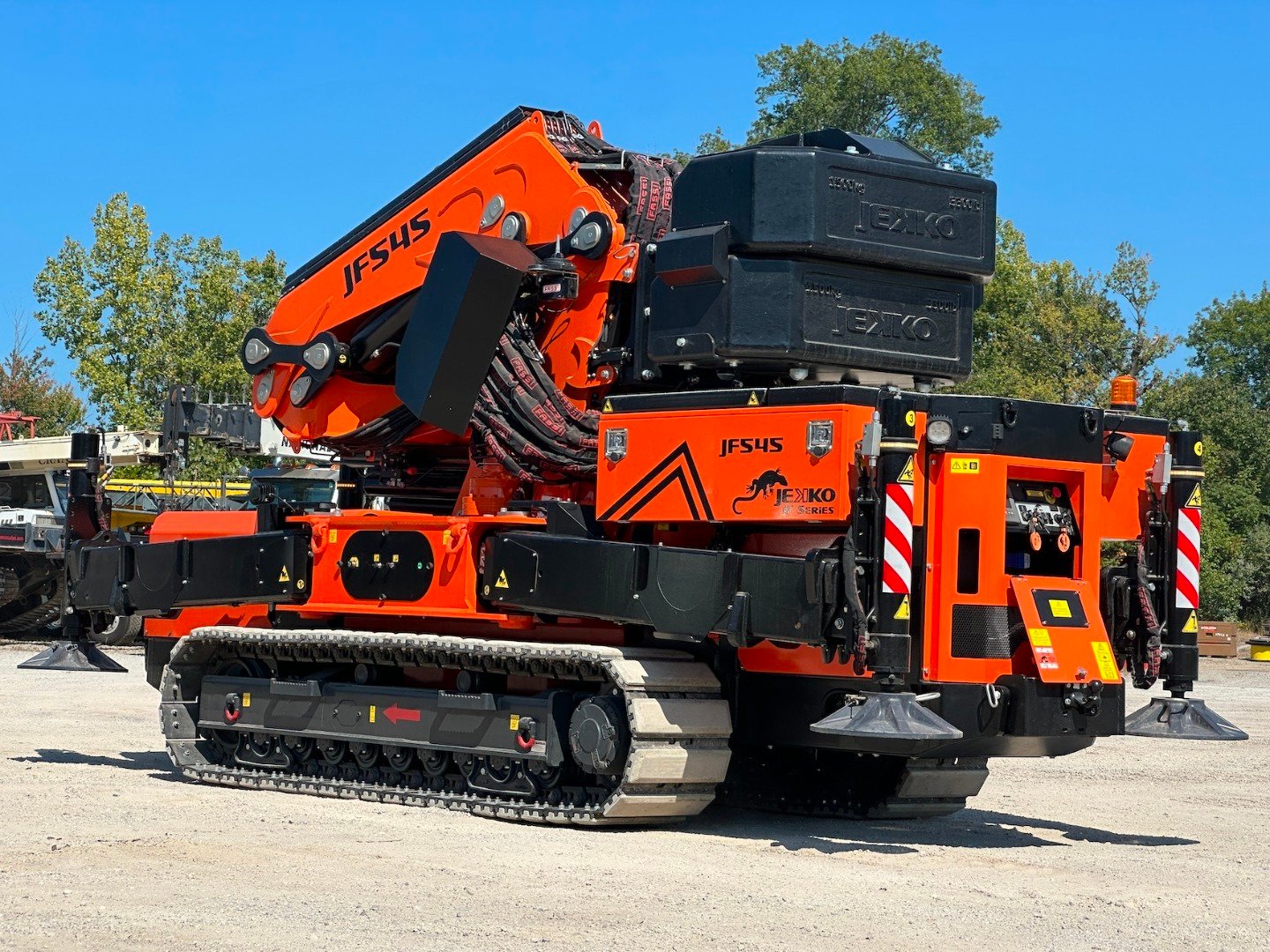

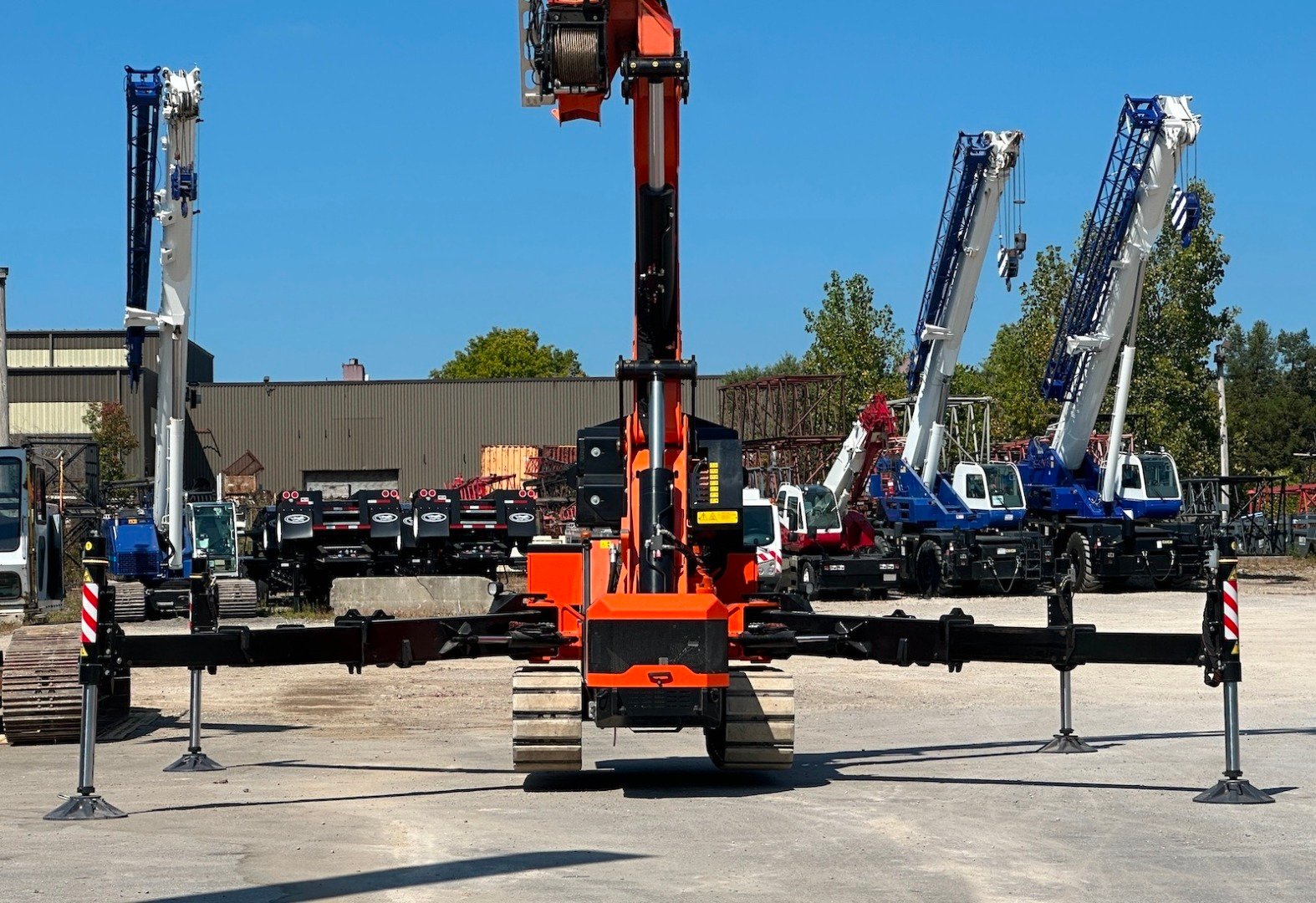

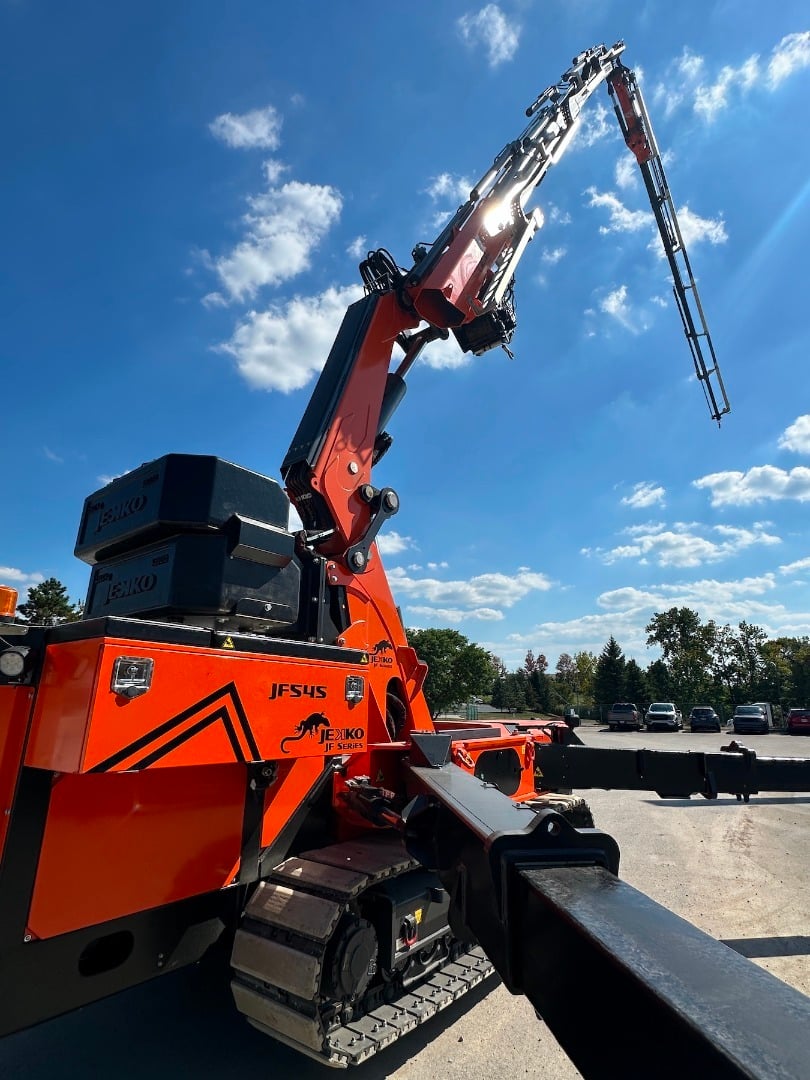

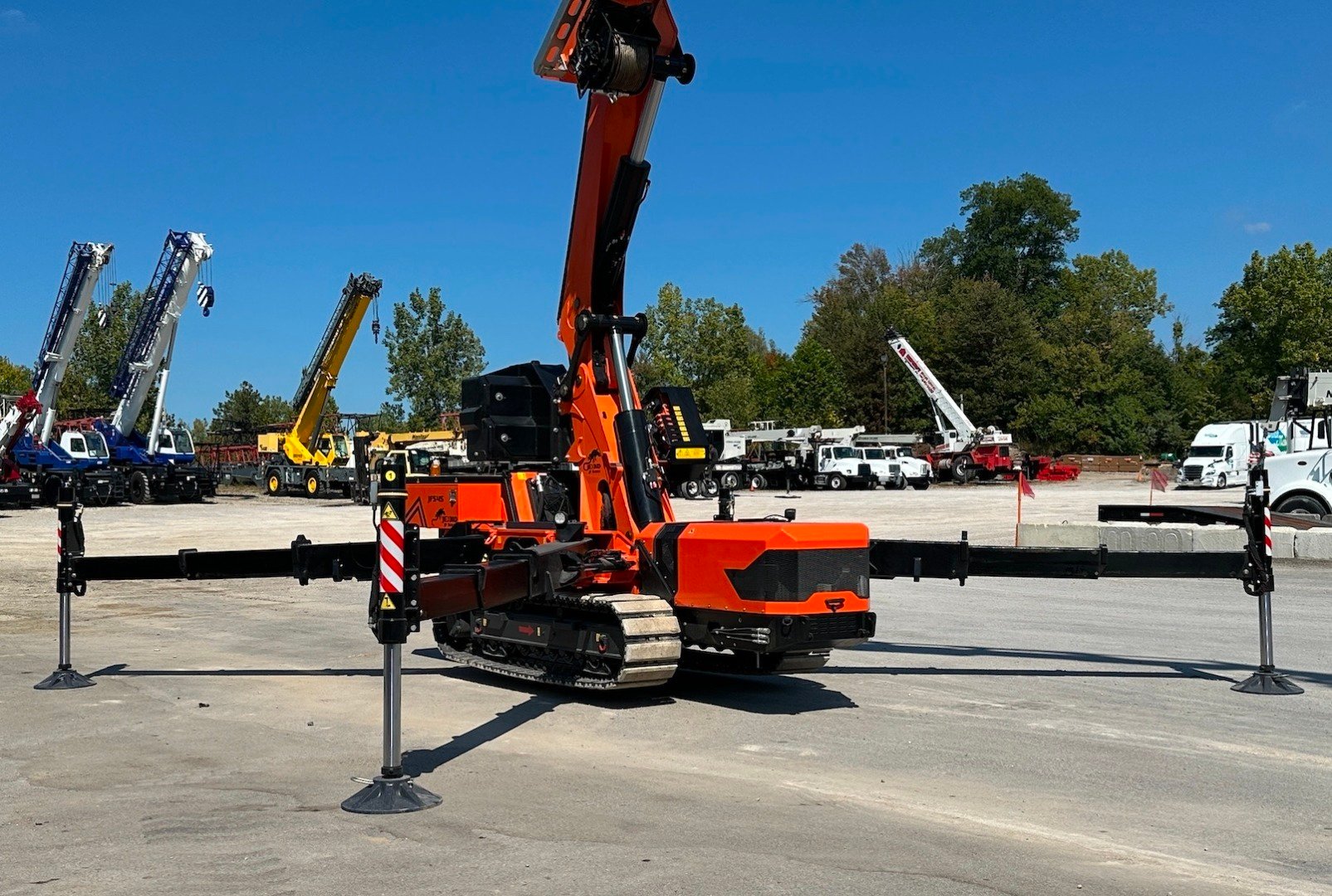

JEKKO JF545CDH-3

• 17-ton capacity (34,170 lbs.)

• Hydraulic Boom: 62 ft.

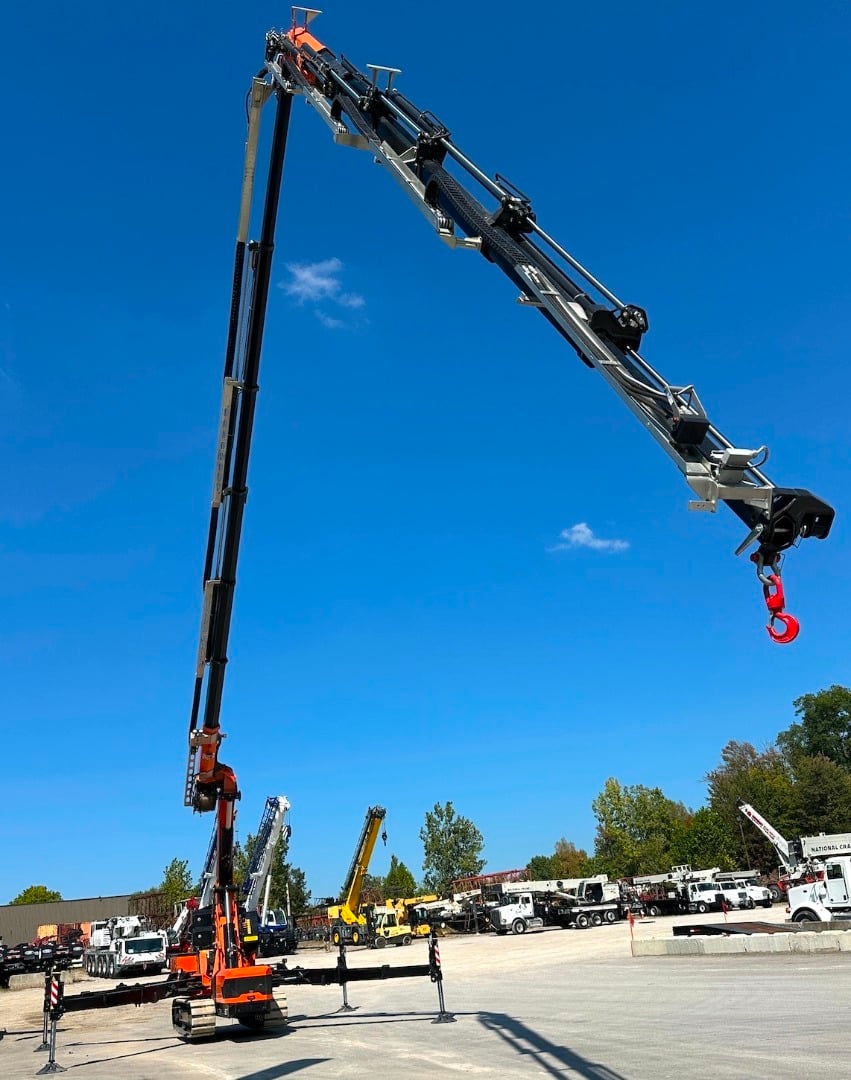

• Hydraulic Jib Extension: 38 ft.

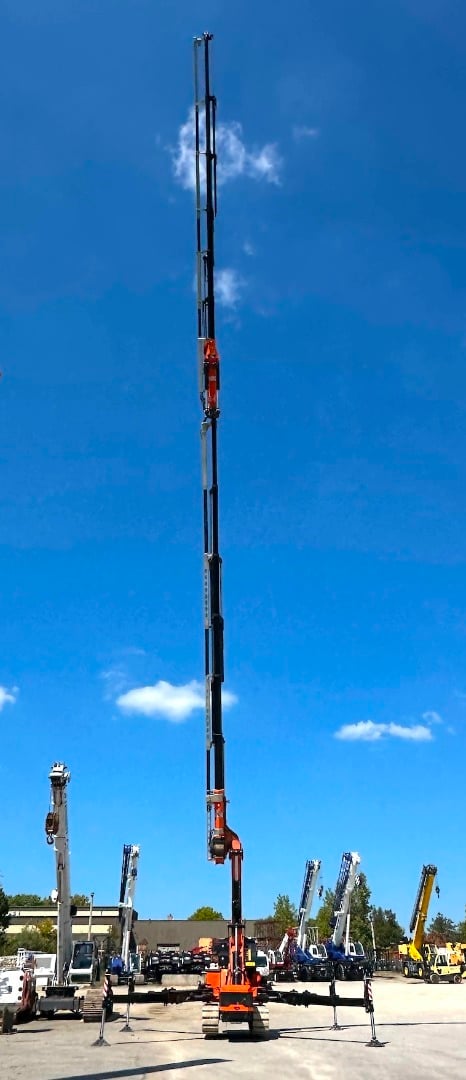

• Max Vertical Reach: 106 ft.

• Max Horizontal Reach: 96 ft.

• Counterweight: 7,716 lbs. (automatic dismantling)

• V30 Winch (strong pick & go option included on crane!)

• Continuous 360º rotation on the slew ring

• Weighs: 44,000 lbs. (including crane, jib, cwt & grapple saw)

• Dimensions: L 18.6 ft x W 6 ft x H 9.6 ft.

• Low-Marking White Track Pads (option included on crane)

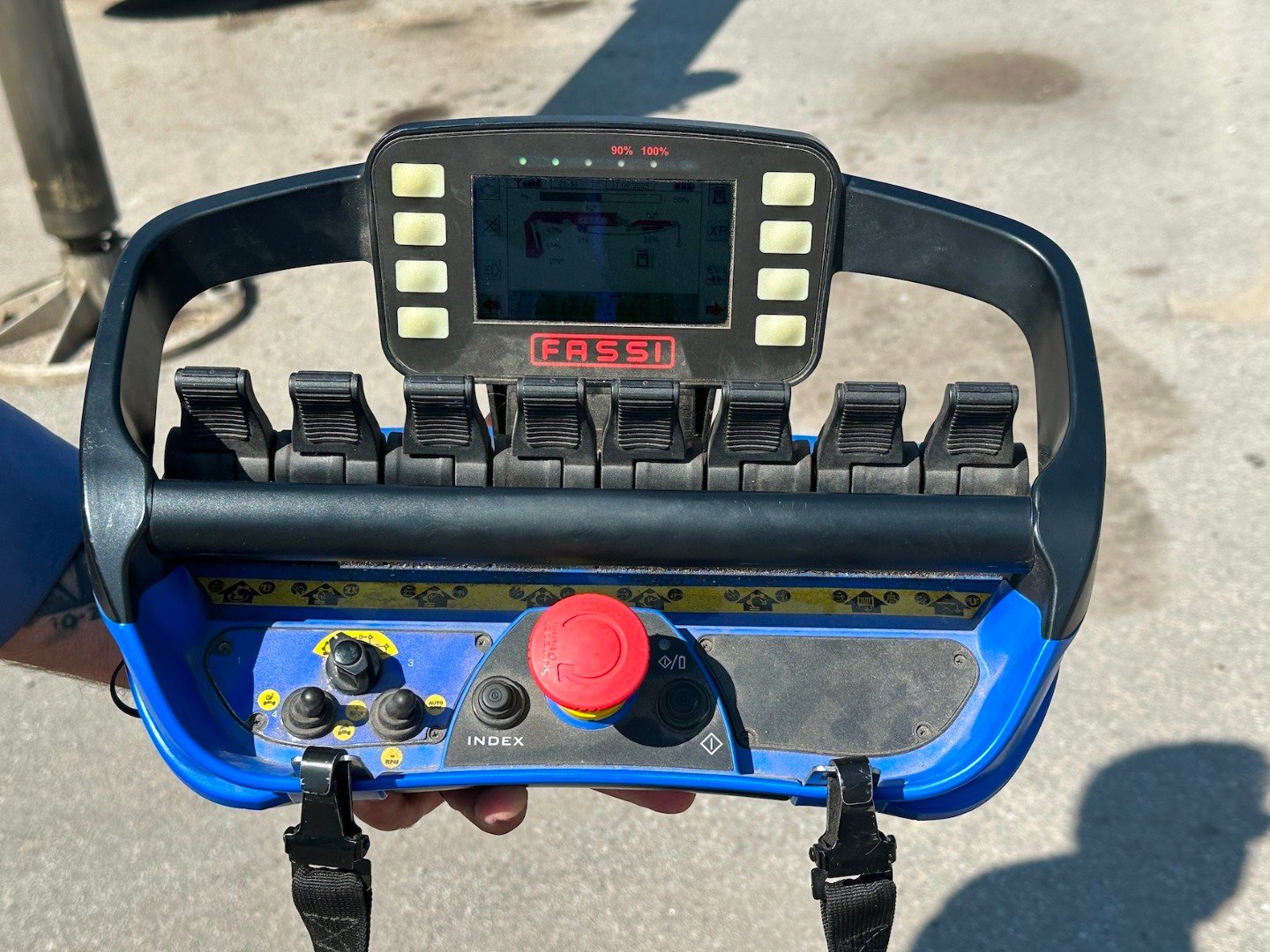

• Radio Remote Control (wireless) with large LCD display screen

• Engine: 74HP Kubota Diesel

• Front & Rear Towing winch

• Tool boxes onboard for storage

• USB stick with manuals and documentation



Optional Equipment:

• Tree Package: Grapple Saw GMT 035 with TTC Full Kit (subject to availability)

  (Specialized System engineered for precise cutting, grabbing, and removal of tree limbs)

• JVM800-R Glass manipulator

• 2-person man basket



>>This is a highly maneuverable articulating crawler crane designed for lifting, rigging and unique jobsite applications. This unit with optional attachments is built for utility, commercial / residential construction, forestry and tree removal, landscape and design development and so much more! Contact our team (888) 635.5636 for a demo or a video overview (we have a video of the grapple saw attachment as well).
