Date Listed: 10-15-2025
Date Updated: 10-15-2025

Link-Belt RTC-8030

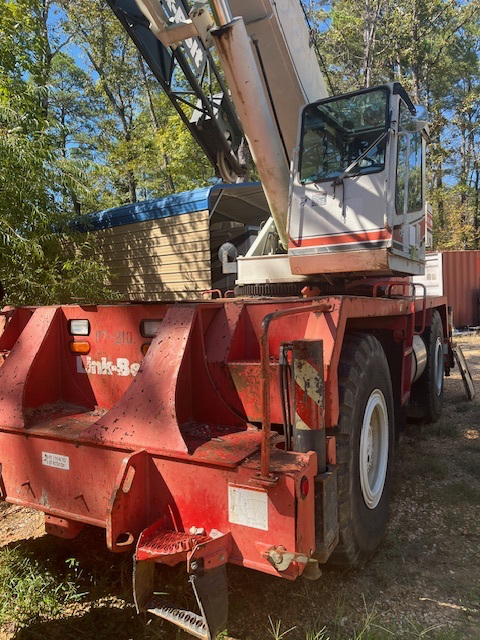

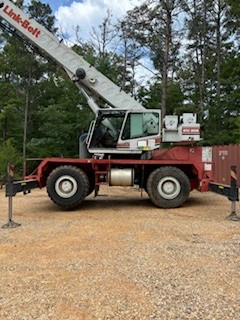

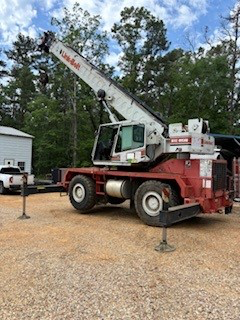

2003 Link-Belt RTC8030 - 30 Ton, Rough Terrain Crane; CranesList ID: 1019,

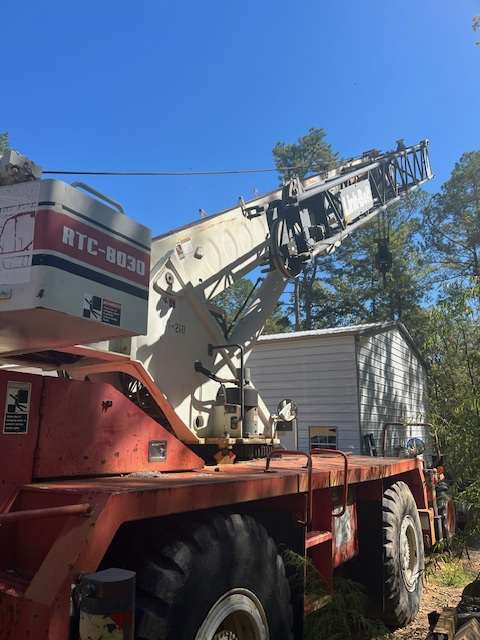

  • 29' to 91' Four Section Full Power Boom with Quick Reeve Boom Head
  • 25’ Fixed Stowable One–Piece Lattice Fly (Jib),stowable, offsettable to 2°, 20°, and 40°
  • Main and Auxiliary Winches with 5/8" Wire Rope
  • Mechanical Boom Angle Indicator, Drum Rotation Indicator, Two Speed, Micro-Guard Rated Capacity Limiter with Anti-Two Block,
  • Hook Ball and Hook Block
  • Swing Brake & House Lock for 360 degree rotation
  • 9,300# counterweights

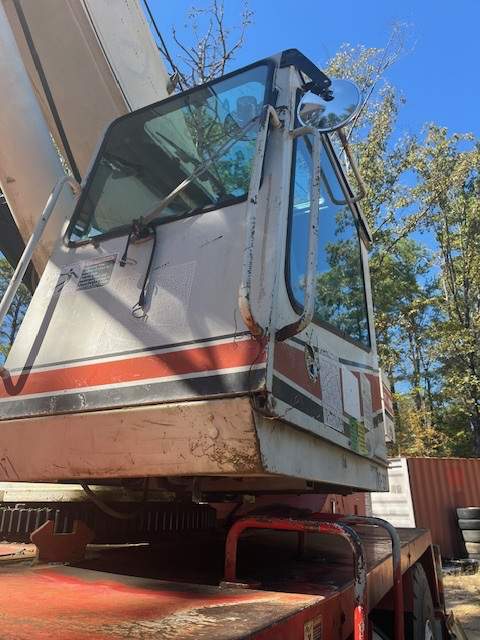

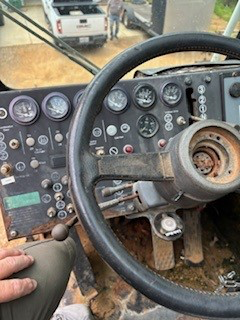

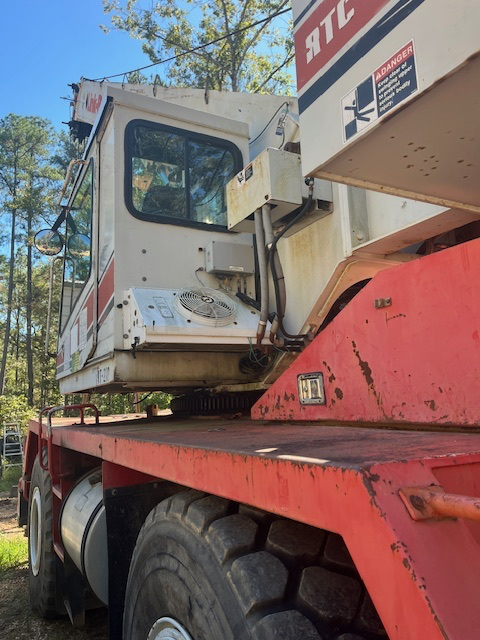

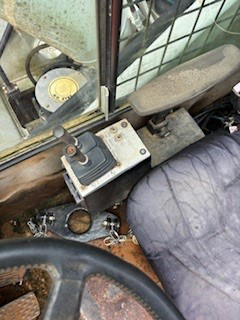

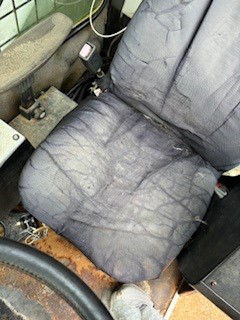

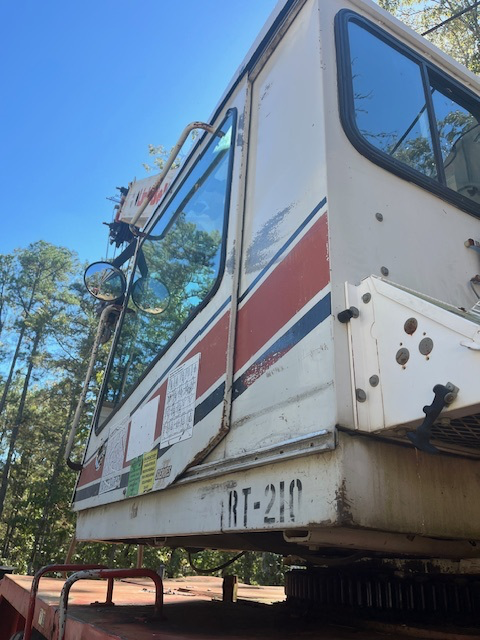

  • Deluxe Environmental Operator's Cab - Engine dependent warm–water heater with defroster, Audible swing alarm, Warning horn, Backup alarm, Travel lights, 12–volt accessory outlet, Sun screen, Electric windshield wiper, Mirrors, Top hatch window with wiper, Cup holder, Fire extinguisher, Circulating fan
  • 8' 6" wide Link-Belt Carrier
  • Cummins 6BT 5.9 diesel engine
  • Powershift --- Three speed with high/low range for 6 forward and 2 reverse gears Transmission  - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION
  • Air Conditioning and Heater in Cab

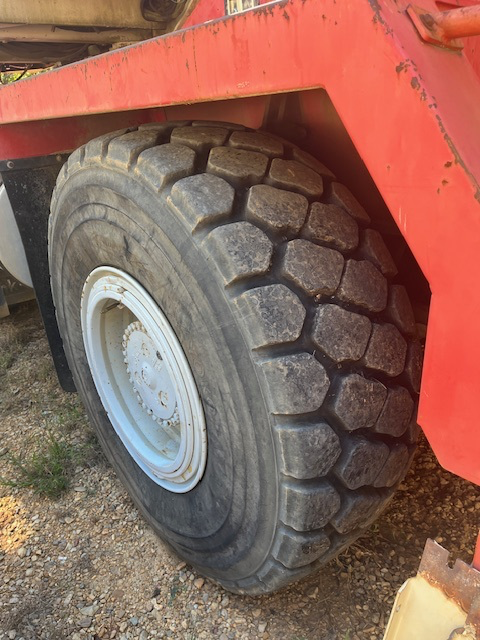

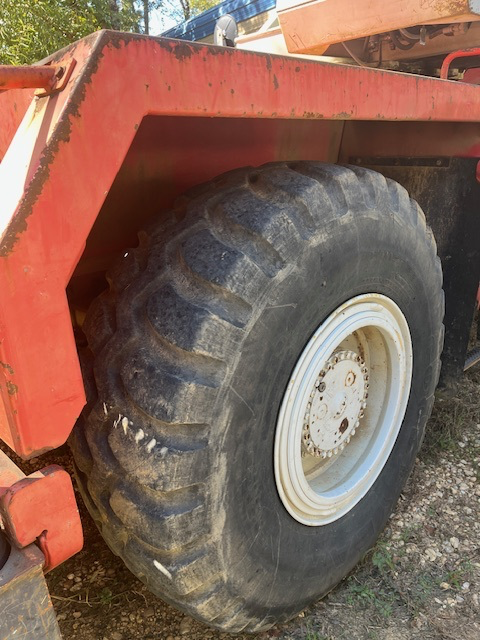

  • Front and Rear Tires: 20.5R25 (24–PR),
  • Three steering modes: independent front, combination, and crab,
  • 4 x 2 and 4 x 4 for off highway travel Drive
  • Confined Area Lifting Capacities (CALC) System, - The crane is operational in one of the three outriggers positions and operational in confined areas in two positions (inter-mediate and full retraction. The three outrigger positions are:  Full extension – 21.63’, Intermediate position – 13’ 8”, Full retraction – 7’ 10”.
    Capacities are available with the outrigger
    beams in the intermediate and full retrac-
    tion positions. When the outrigger position levers (lo-
    cated on the outrigger beams) are en-
    gaged, the operator can set the crane in
    the intermediate or full retraction outrigger
    position without having to leave the cab.

http://www.CranesList.com

LOCATED IN MISSISSIPPI!
